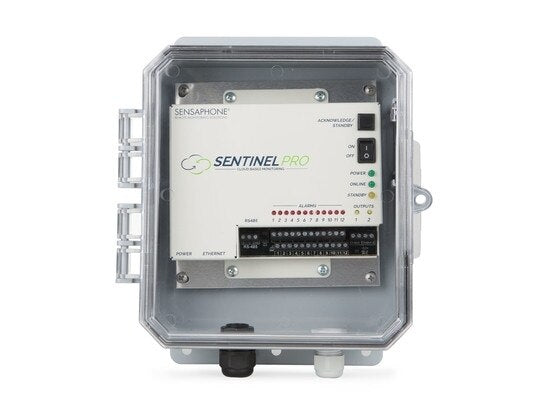

Sensaphone SCD-PRO-CD Sentinel Pro in NEMA 4X Enclosure
Monitor remote facilities and environments with Sensaphone's cloud-based Sentinel Pro. Monitor for power failures, dry contact closures or sensors with sensor logging and alerts. Use the free iOS and Android apps to monitor on the go.
The SCD-PRO-CD is also a "supervised" system, meaning if there is a disruption in service causing the Sentinel to lose its connection with the servers, users will be alerted right away to the potential problem.
The system is housed in a NEMA4X weatherproof lockable enclosure.
12 INPUT ZONES
The Sentinel features 12 distinct inputs supporting contact closures, 2.8K and 10K sensors and 4-20mA sensors.
MODBUS SUPPORT
In addition to the 12 inputs, Sentinel Pro supports up to 64 MODBUS sensors to monitor and log data and provide alarms and alerts. The system supports MODBUS via RTU/485 and TCP.
DUAL OUTPUT RELAYS
Sentinel has a built in relay that can be used to connect a siren or strobe or control external devices or equipment. The relays can be triggered by a tripped zone or remotely through the app.
CLOUD SERVICE, DATA LOGGING, ALERTS
Sentinel communicates with the Sensaphone cloud to store sensor values, provide reporting, and send alerts. Multiple users can bet set up with their own login. Multiple Sentinel units can be managed through the cloud service.
The FREE cloud service provides 30 days of sensor data storage and email alerts.
The PREMIUM service provides unlimited storage, text messaging, telephone alerts and auditing.
BATTERY BACKUP
The Sentinel has a built in battery backup to keep it running in case of a power failure for up to 8 hours. Power failures are logged and the system will send an alert. It's a supervised system meaning if it loses it's connection to the servers (internet goes down for example) an alarm message will be sent out right away.
The Sentinel Pro's basic ethernet cloud package is FREE so you don't have to worry about monthly payments. A Premium Ethernet subscription is available at a cost.
Sensaphone SCD-PRO-CD Sentinel Pro Specifications
- Email, text and phone call alarm notifications
- Monitors for power failure
- 12 Universal Inputs
- Inputs support 2.8K, 10K, 4-20mA, dry contact
- 2 programmable relay outputs (Rated for 1A 30VAC/ 1A 30VDC)
- Works with Modbus RTU/485 and Modbus TCP
- Logs sensor data / inputs to the Sensaphone cloud for reporting and monitoring
- Ethernet 10/100Base-T communication port
- Temperature sensing range: -109° to 168°F | -85° to 76°C
- Comes with a 12VDC power supply
- 4.8V 2000mAHr NiMh battery pack included
- Battery backup up to 8 hours
- Housed in NEMA4X lockable enclosure
