Description

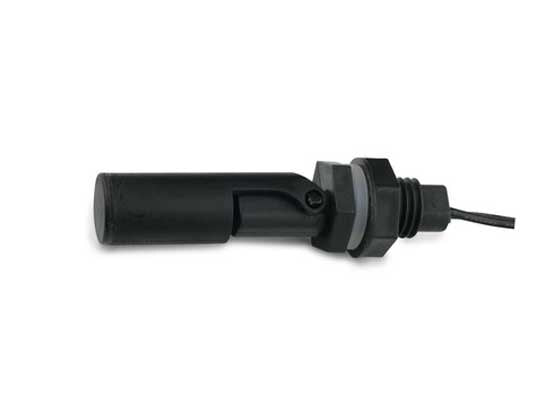

Sensaphone FGD-0222 Float Switch
The Sensaphone FGD-0222 Float Switch is a plastic side mounted float switch that is a cost effective solution for level control applications in tanks where it is convenient to install a level switch through the sidewall of the tank. This style float switch can be rotated for Normally Open or Normally Closed operation.
Combine two or more switches at different levels for high and low level or pump control or alarming. The Sensaphone FGD-0222 Float Switch is the perfect accessory to allow your Sensaphone to monitor liquid levels.
FGD-0222 Float Switch Specifications
- Operating Range: -10° to 80°F | -23° to 26°C
- Can be rotated for Normally Open or Normally Closed operation
- Contact rating: 50W
- Connection: Hardwired
- Max switch voltage: 100VDC
- Dimensions: 3.5 x 1.5 | 89 x 38mm
FGD-0222 Float Switch Includes
- 1 x Float Switch
